Cisco Catalyst C9500-12Q-A

Key Takeaways

• The C9500-12Q-A delivers 960 Gbps switching capacity with 12 x 40GbE QSFP ports and 720 Mpps forwarding rate, making it ideal for enterprise core and aggregation layer deployments requiring high-bandwidth uplinks.

• Built on UADP 3.0 ASIC architecture, the switch supports hardware-accelerated security with 18,000 Security ACL entries, MACsec encryption, and Cisco TrustSec for comprehensive enterprise segmentation and data protection.

• The platform scales to 512,000 Flexible NetFlow entries and 212,000 IPv4/IPv6 routing entries while supporting StackWise-480 stacking of up to 8 units, enabling large-scale campus and data center environments.

• With an MTBF rating of 179,660 hours, 94% efficient 950W platinum power supply, and wide operating temperature range (-4°F to 149°F), the switch provides mission-critical reliability for enterprise infrastructure.

• Refurbished C9500-12Q-A units from authorized resellers offer cost-effective procurement options when combined with third-party maintenance agreements, reducing total cost of ownership without sacrificing performance.

• The switch integrates with Cisco DNA Center for intent-based networking and cloud operations, providing native IoT automation and NSF/SSO high-availability capabilities for modern enterprise cloud-ready deployments.

Enterprise networks demand hardware capable of sustaining high-throughput workloads, supporting advanced security protocols, and scaling alongside evolving infrastructure requirements. The Cisco Catalyst C9500-12Q-A addresses these demands precisely, delivering 12 nonblocking 40 Gigabit Ethernet QSFP ports with a switching capacity of 960 Gbps and a forwarding rate of 720 Mpps. Designed for deployment at the core and aggregation layers of enterprise campus networks, this switch integrates programmability, security, and high availability into a compact 1U chassis. Whether you are managing a distributed enterprise network, consolidating data center connectivity, or expanding campus infrastructure to support IoT and cloud workloads, the C9500-12Q-A offers the performance density needed to maintain operational continuity. This article provides a detailed technical overview of the Cisco Catalyst C9500-12Q-A, covering its hardware architecture, feature set, environmental specifications, and deployment considerations for enterprise IT environments.

Hardware Architecture and Core Specifications

The Cisco Catalyst C9500-12Q-A is built on the UADP 3.0 (Unified Access Data Plane) ASIC, which provides the processing foundation for advanced network functions including deep packet inspection, flexible NetFlow, and hardware-accelerated security ACLs. The switch is powered by an Intel 2.4-GHz x86 CPU with 16 GB DRAM and 16 GB flash storage, enabling robust software execution and supporting Cisco IOS XE operating system features without performance degradation. For enterprise IT managers evaluating high-performance switching infrastructure, these specifications represent a meaningful advancement in programmable data plane capabilities. You can explore current hardware availability by visiting Trifecta Networks for pre-owned and refurbished options that deliver enterprise-grade performance at reduced acquisition costs.

The following table summarizes the core hardware specifications of the Cisco Catalyst C9500-12Q-A:

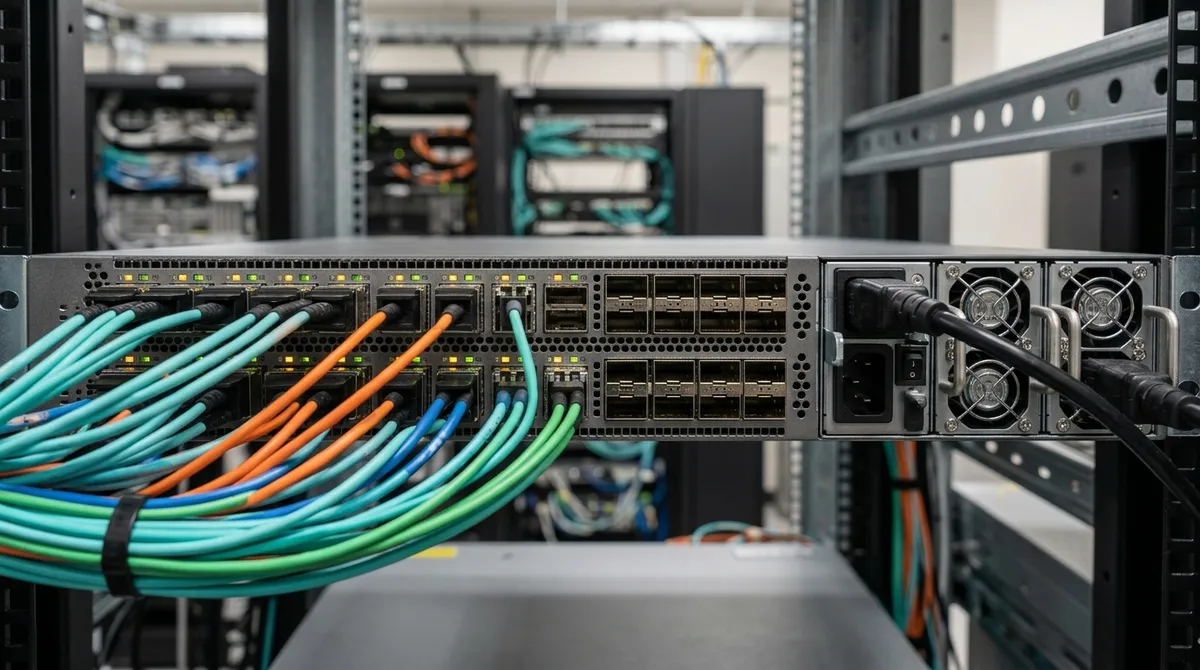

Port Density and Connectivity

The C9500-12Q-A provides 12 fixed 40 Gigabit Ethernet QSFP ports, each capable of nonblocking wire-rate forwarding. This port density is particularly valuable in environments where high-speed uplinks to distribution switches, spine-layer connectivity, or server aggregation are required. The 40GbE interface standard supports both direct-attach copper (DAC) cables and optical transceivers, providing flexibility in physical layer deployments across varying rack distances. Network infrastructure teams evaluating aggregation switch candidates for high-performance campus cores will find the C9500-12Q-A’s port-to-bandwidth ratio highly competitive for its form factor.

For teams managing large-scale deployments, the following considerations apply when planning C9500-12Q-A connectivity:

1. Uplink Planning: Each QSFP port supports 40GbE, enabling high-density server or distribution uplinks within a single 1U device.

2. Transceiver Compatibility: Verify QSFP transceiver compatibility with existing fiber plant infrastructure prior to deployment.

3. Cabling Standards: Use Cisco-qualified DAC or optical transceiver modules to maintain compatibility and TAC support eligibility.

4. Stacking Configuration: The C9500-12Q-A supports StackWise-480, enabling logical stacking of multiple units for simplified management and increased port capacity.

Advanced Feature Set and Software Capabilities

Operating on Cisco IOS XE, the C9500-12Q-A supports an extensive software feature set designed for modern enterprise deployments. The switch delivers hardware-accelerated support for up to 512,000 Flexible NetFlow entries, 18,000 QoS ACLs, 18,000 Security ACLs, and up to 212,000 routing table entries for both IPv4 and IPv6 prefixes. These scale figures enable the C9500-12Q-A to serve as a capable core layer device in large campus and data center environments. As noted by Network World, high-capacity switching platforms like the Catalyst 9500 series are increasingly deployed as the backbone for next-generation enterprise campus architectures integrating IoT, cloud, and security automation.

Key software and security features supported on the Cisco Catalyst C9500-12Q-A include:

• MACsec Encryption: Hardware-based 802.1AE encryption for securing data in transit across inter-switch links.

• Cisco TrustSec: Policy-based segmentation using Security Group Tags (SGTs) for granular access control.

• IoT Automation: Native support for device classification and policy enforcement in IoT-dense environments.

• Cloud Readiness: Integration with Cisco DNA Center for intent-based networking and cloud-managed operations.

• NSF/SSO: Nonstop Forwarding and Stateful Switchover for high availability during control plane events.

• IPv6 Hardware Support: Native IPv6 routing and ACL enforcement at hardware speeds without software penalty.

Scalability and ACL Performance Table

The table below outlines the scale parameters relevant to enterprise deployments, helping IT procurement specialists and network architects assess fit for high-density or security-sensitive environments:

Physical Specifications and Environmental Tolerances

The Cisco Catalyst C9500-12Q-A occupies a single rack unit with physical dimensions of 1.73 x 17.5 x 21.5 inches, making it suitable for standard 19-inch rack deployments. The unit is rated to operate within a temperature range of -4°F to 149°F (-20°C to 65°C), providing sufficient tolerance for both controlled data center environments and less climate-regulated network closets. With a Mean Time Between Failures (MTBF) of 179,660 hours, the C9500-12Q-A demonstrates a strong reliability profile for mission-critical deployments. Data center operators and enterprise IT managers prioritizing uptime will find the MTBF figure significant when building the business case for infrastructure investment.

The platinum-rated power supply delivers 950W AC capacity with approximately 94% efficiency, while maximum system power consumption reaches 850W with a thermal load of 2,901 BTU/hr. These power parameters are important inputs for data center power budgeting and rack-level PDU planning.

Deployment Use Cases for Enterprise Environments

The Cisco Catalyst C9500-12Q-A is well-suited for several enterprise deployment scenarios, particularly at the core and aggregation layers. Its 40GbE port density supports high-bandwidth spine-leaf topologies commonly used in campus and data center architectures. Organizations deploying unified communications, high-definition video collaboration, or large-scale virtual desktop infrastructure (VDI) can leverage the switch’s forwarding capacity to maintain latency-sensitive application performance. According to Technology Reseller News, enterprise hardware procurement is increasingly focused on density, programmability, and security integration—all areas where the Catalyst 9500 series delivers measurable value.

Common deployment scenarios for the C9500-12Q-A include:

• Campus Core Layer: Serving as the backbone switch in large enterprise campus networks connecting multiple distribution switches.

• Data Center Aggregation: Aggregating uplinks from top-of-rack switches in medium-density data center environments.

• IoT Gateway Aggregation: Centralizing policy enforcement for IoT device segments using Cisco DNA Center integration.

• High-Availability Stacking: Deploying paired C9500-12Q-A units in a StackWise-480 configuration for redundancy and simplified management.

Sourcing Refurbished Cisco Catalyst C9500-12Q-A Hardware

For enterprise IT managers and procurement specialists working within capital expenditure constraints, sourcing certified pre-owned or refurbished Cisco Catalyst C9500-12Q-A units represents a proven strategy for maintaining performance without incurring full list-price expenditure. Refurbished units from authorized resellers undergo rigorous testing and inspection processes to ensure hardware integrity prior to deployment. Organizations can also supplement refurbished hardware procurement with third-party maintenance agreements to extend equipment life cycles and maintain support coverage post-Cisco end-of-support milestones. Browse current Cisco hardware specials to identify cost-effective sourcing options for the C9500-12Q-A and related Catalyst 9500 series equipment.

When evaluating refurbished Cisco Catalyst C9500-12Q-A units, IT procurement teams should apply the following qualification criteria:

1. Inspection and Testing Documentation: Require documentation confirming port-level testing, power supply validation, and firmware verification.

2. Software License Entitlement: Verify the unit ships with valid IOS XE licensing appropriate for the intended feature tier (Essentials, Advantage, or Premier).

3. Third-Party Maintenance Availability: Evaluate whether the reseller offers post-purchase maintenance support to cover hardware replacement and technical assistance beyond the warranty period.

Third-party maintenance is a particularly valuable consideration for enterprise environments running Cisco hardware past its end-of-support date. Explore Tri-Net third-party maintenance services to understand how extended support contracts can reduce total cost of ownership for Catalyst 9500 series deployments. Additionally, teams looking to responsibly retire legacy networking hardware should evaluate IT Asset Disposition (ITAD) services to recover residual value from decommissioned equipment.

Conclusion

The Cisco Catalyst C9500-12Q-A is a technically robust, high-density switching platform purpose-built for enterprise core and aggregation layer deployments. With 12 x 40GbE QSFP ports, 960 Gbps switching capacity, UADP 3.0 ASIC processing, and an extensive feature set encompassing MACsec, NSF/SSO, Flexible NetFlow, and Cisco DNA Center integration, it delivers the performance and programmability required by modern enterprise network architectures. Its strong MTBF rating, wide environmental tolerance, and platinum-rated power efficiency further support its suitability for mission-critical infrastructure. For organizations seeking to acquire this hardware cost-effectively, refurbished units combined with third-party maintenance support provide a financially prudent deployment path. To explore available inventory and discuss procurement or maintenance options tailored to your infrastructure requirements, request a quote from our team and take the next step toward optimizing your network investment.

FAQs

Q: What are the primary specifications of the Cisco Catalyst C9500-12Q-A?

A: The Cisco Catalyst C9500-12Q-A features 12 nonblocking 40 Gigabit Ethernet QSFP ports, a switching capacity of 960 Gbps, and a forwarding rate of 720 Mpps. It is powered by an Intel 2.4-GHz x86 CPU with 16 GB DRAM, 16 GB flash, and the UADP 3.0 ASIC, operating on Cisco IOS XE.

Q: Is the Cisco Catalyst C9500-12Q-A suitable for enterprise core and aggregation layer deployment?

A: Yes, the C9500-12Q-A is specifically engineered for enterprise core and aggregation layer roles. Its 40GbE port density, high ACL scale (18,000 QoS and Security ACL entries), and support for StackWise-480 make it well-suited for high-bandwidth campus backbone and data center aggregation architectures.

Q: What security features does the Cisco Catalyst C9500-12Q-A support?

A: The C9500-12Q-A supports hardware-based MACsec (802.1AE) encryption, Cisco TrustSec with Security Group Tag (SGT) enforcement, and up to 18,000 hardware-accelerated Security ACL entries. These features enable comprehensive in-flight data protection and granular network segmentation policies across enterprise environments.

Q: What is the MTBF rating of the Cisco Catalyst C9500-12Q-A and what does it indicate?

A: The C9500-12Q-A has a Mean Time Between Failures (MTBF) of 179,660 hours, indicating a high reliability profile appropriate for mission-critical deployments. This metric reflects the statistical expectation of hardware reliability under normal operating conditions and supports long-term enterprise infrastructure planning.

Q: Can the Cisco Catalyst C9500-12Q-A be sourced as a refurbished unit with maintenance support?

A: Yes, certified pre-owned and refurbished Cisco Catalyst C9500-12Q-A units are available through authorized resellers and can be paired with third-party maintenance agreements to extend hardware life cycles. This approach reduces capital expenditure while maintaining operational reliability and technical support coverage for the equipment.
