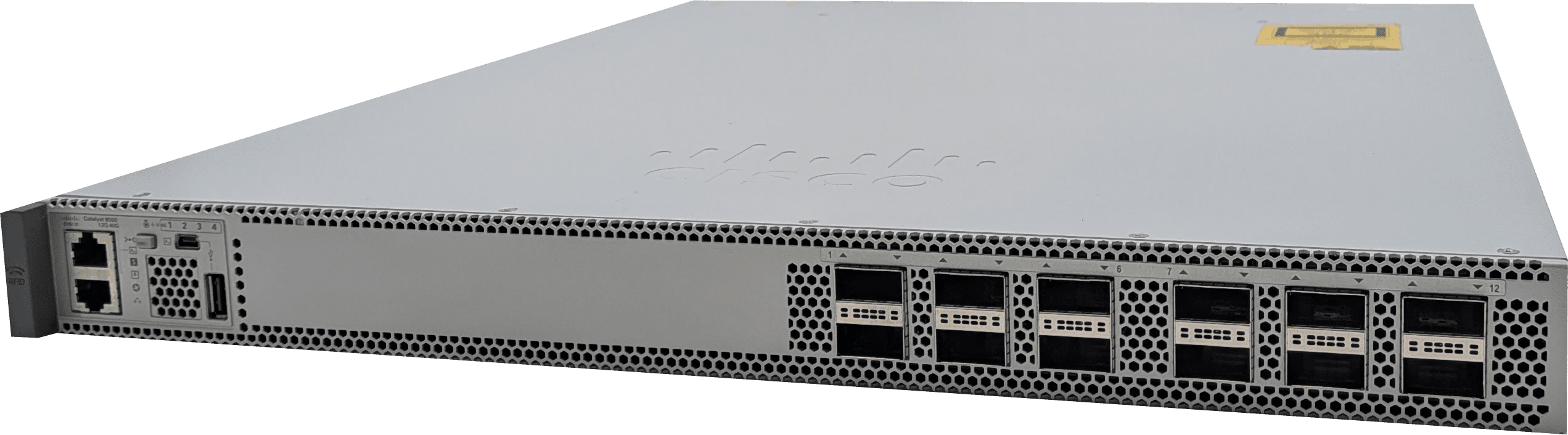

The Cisco Catalyst 9500 series of switches are designed for high-performance fixed core and aggregation networking. Bringing datacenter capabilities to any enterprise environment. Featuring robust ASIC architecture to support advanced switching, routing, and security infrastructure services. In addition, each switch includes high availability features including virtual stacking, redundant power supplies and fans.
Related Content | Resources | Technical Specs
Starting at $1,799*
- Access Ports: : 12 x 40Gb QSFP+optical ethernet ports native
- Optional Ports*: Optional configuration for up to 48 x 10Gb SFP+ ports using optional QSFP+ breakout optics and cables
- Software: Available with Network Enterprise or Network Advantage perpetual featureset
- Management: Cisco CLI, WebUI, or optional Meraki Monitoring
*Pricing listed is not guaranteed. Prices are subject to change at any time, depending on available inventory and market pricing
★ 100% Quality Guarantee ★
★ ISO Certified Testing Facility ★
★ Lifetime Replacement Warranty ★
★ Expertly Packed and Shipped ★
Related Content
VIDEO: Cisco Catalyst C9500-12Q-A
Resources
🖺 Tech Spec Sheet
Technical Specs
- The Cisco UADP ASIC is ready for next-generation technologies with its programmable pipeline, microengine
capabilities, and template-based, configurable allocation of Layer 2 and Layer 3 forwarding, ACLs, and QoS entries. - Up to 6.4-Tbps switching capacity with up to 2 Bpps of forwarding performance.
- Up to 36 MB of unified buffer per ASIC.
- Intel® 2.4-GHz x86 CPU with up to 120 GB of USB 3.0 or up to 960 GB of SATA SSD storage for container-based
application hosting. - Up to 32 nonblocking 100 Gigabit Ethernet QSFP28 ports.
- Up to 32 nonblocking 40 Gigabit Ethernet QSFP+ ports.
- Up to 48 nonblocking 25 Gigabit Ethernet SFP28 ports.
- Up to 48 nonblocking 10 Gigabit Ethernet SFP+ ports.
- Scalable Layer 3 routing (IPv4, IPv6, and multicast) tables and Layer 2 switching tables.
- Hardware support for application hosting.
- IEEE 802.1ba Audio Video Bridging (AVB) built in to provide a better AV experience through improved time
synchronization and QoS. - Precision Time Protocol (PTP; IEEE 1588v2) provides accurate clock synchronization with sub-microsecond
accuracy, making it suitable for distribution and synchronization of time and frequency over the network. - Support for both static and dynamic NAT and Port Address Translation (PAT).
- Cisco StackWise Virtual technology, a network system virtualization technology that increases operational
efficiency and boosts nonstop communications and scaled system bandwidth. Multichassis EtherChannel can be
configured across StackWise Virtual members for high resiliency. - Platinum-rated (greater than 90% efficient) AC and/or DC power supplies.
- Field-replaceable fan-tray units.
- Meraki cloud monitoring option.
