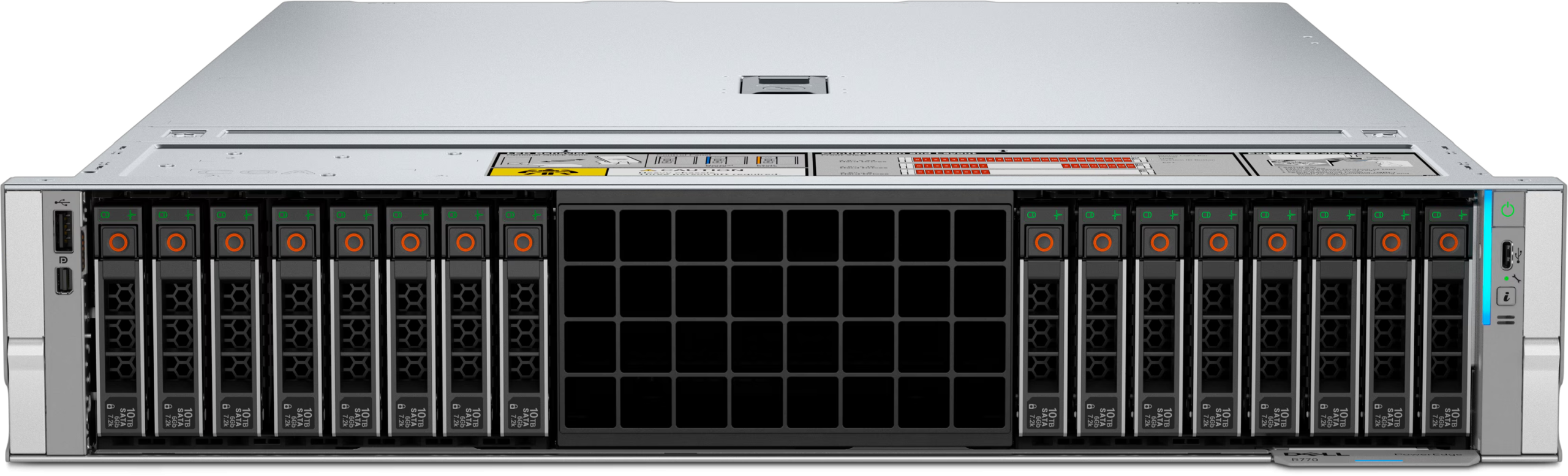

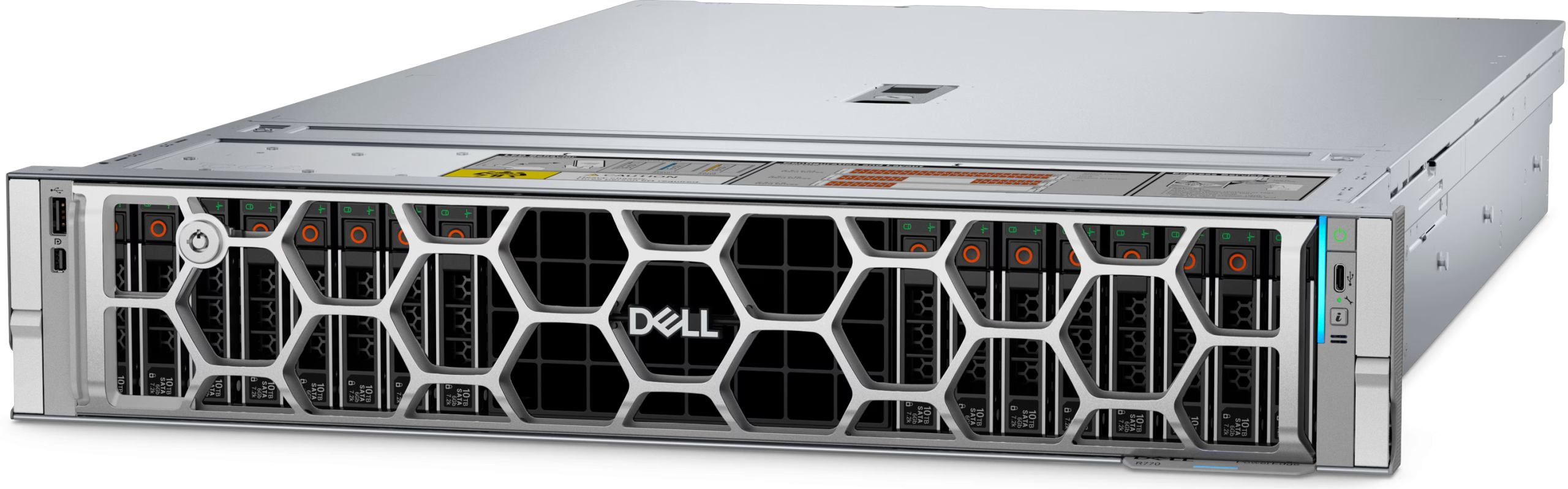

The Dell PowerEdge R770 is a 2U, dual-socket rack server designed for high performance computing with optimal
power efficiency and balanced performance to boost your data center productivity. It balances advanced computing
power with virtualization, artificial intelligence inferencing, cloud-native applications, hyperscale workloads, and scale out databases.
Related Content | Resources | Technical Specs
Request a Custom Quote Today!
- CPU: 2x Intel Xeon 6 Processor with up to 144 cores per processor
- Memory: 32x DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 6400 MT/s
- RAID: PERC H365i, PERC H965i, PERC H975i
- HDD: 2.5″ or E3.S Hot Swap SAS, SATA, Near Line SAS, and NVMe SSD
- PSU: 800W Platinum/Titanium, 1100W Platinum/Titanium, 1400W -48VDC, 1500W Titanium, 1800W Titanium, 2400W Titanium, 3200W Titanium, hot swap redundant
- Riser: Up to 2x Gen5 PCIe slots (x16 connectors), up to 8x Gen5 PCIe slots (x8 and x16 connectors)
★ Dell Partner & Authorized Reseller ★
★ Stocking Vendor for Fast Turnaround ★
★ 100% Dell Original Components ★
★ Custom Builds by Dell Certified Engineers ★
Related Content
Resources
Technical Specs
- 2x Intel Xeon 6 Processors with up to 144 E-cores or 86 P-cores per processor
- 32x DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 6400 MT/s
- Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1,
2x M.2 NVMe SSDs or M.2 Interposer board (DC-MHS): 2x M.2 NVMe SSDs or USB - Internal controllers: Front PERC H965i, Front PERC H975i, Front PERC H365i
- Up to 40x EDSFF E3.S Gen5 NVMe max 2457.6 TB
- Up to 24x 2.5″ SATA max 92.16 TB
- Up to 16x 2.5″ inch” SATA + 8x 2.5″-inch” NVME max 552.96 TB
- Up to 3200W Hot-Swap PSU
- Air cooling and Direct Liquid Cooling
- Up to 6x hot swappable fans
- OCP NIC card 3.0: 2x front slots front or 2x rear slots
- Up to 6x 75 W FHHL or up to 2x 450 W DWFL GPUs
- Front Ports:
• 1 x USB 2.0 Type C port
• 1 x USB 2.0 Type A port (optional)
• 1 x Mini-DisplayPort (optional)
• 1 x DB9 Serial (with front I/O configuration)
• 1 x Dedicated ethernet port for iDRAC management - Rear Ports:
• 1 x Dedicated ethernet port for iDRAC management
• 1 x VGA
• 2 x USB 3.1 Type A ports - Internal Ports:
• 1 x USB 3.1 Type A port - Up to 2x PCIe slots ( x16 connectors)
