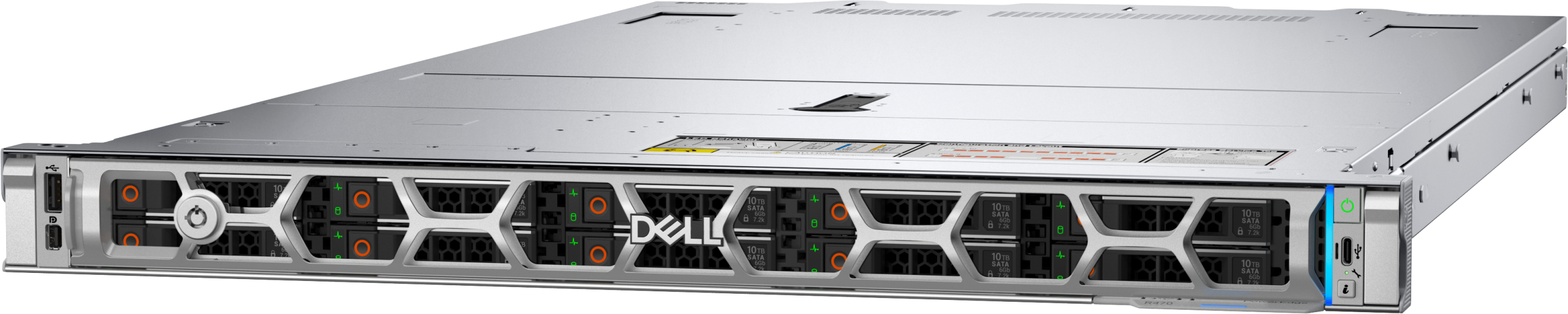

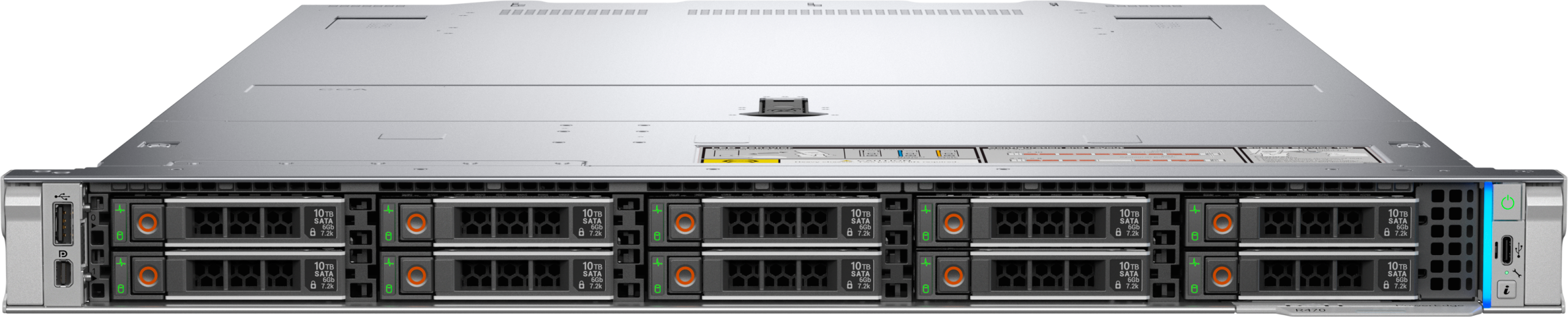

The Dell PowerEdge R470 is a 1U, single-socket rack server engineered for high-performance computing with optimal
power efficiency and balanced performance, driving cost savings and boosting data center productivity. Its advanced
design maximizes rack utilization by offering more cores in a single socket enabling better performance in a smaller footprint while minimizing energy consumption. This makes it ideal for workloads like cloud scale web and app microservices, data services, virtualization, and scale-out database.
Related Content | Resources | Technical Specs
Request a Custom Quote Today!
- CPU: 1x Intel Xeon 6 E-core Processor with up to 144 Cores or 1x Intel Xeon 6 P-core Processor with up to 86 Cores
- Memory: 16x DDR5 DIMM slots, supports RDIMM 4 TB max, speeds up to 6400 MT/s
- RAID: PERC H365i,H965i, H365i adapter
- HDD: 2.5″ or E3.S Hot Swap SAS, SATA, Near Line SAS, and NVMe SSD
- PSU: 800W Platinum, 1500W Titanium, hot swap redundant
- Riser: Up to 2x Gen5 PCIe slots (x16 connectors)
★ Dell Partner & Authorized Reseller ★
★ Stocking Vendor for Fast Turnaround ★
★ 100% Dell Original Components ★
★ Custom Builds by Dell Certified Engineers ★
Related Content
Resources
Technical Specs
- One Intel® Xeon 6 E-core processor with up to 144 cores per processor or
- One Intel® Xeon 6 P-core processor with up to 86 Cores with R1S option
- 16 DDR5 DIMM slot, supports RDIMM 4TB max, speeds up to 6400 MT/s
- Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 xM.2 NVMe SSDs, M.2 interposer with up to 2 x M.2 NVMe SSDs or USB
- Internal controllers: PERC H365i DC-MHS, front PERC H965i DC-MHS, PERC H365i adapter, PERC H965i adapter
- Up to 16 x EDSFF E3.S Gen5 NVMe max 983.04 TB
- Up to 10 x 2.5 – inch SATA/NVMe (with 4 x 2.5 -inch universal) max 614.4 TB
- Up to 4 x 3.5 – inch SATA max 128 TB (only supported with rear 2 x E3.S drives; not supported as standalone front-only configuration)
- Up to 1500W Hot-Swap PSU
- Air Cooling
- Up to 4x hot swappable fans
- Up to two OCP NIC card 3.0: Two slots on the front or two slots on the rear (optional)
- Up to 4 x 75 W SW GPUs
- Front Ports:
- 1 x USB 2.0 Type – C port
- 1 x USB 2.0 Type A port (optional)
- 1 x Mini-DisplayPort (optional)
- 1 x DB9 Serial (with front I/O configuration)
- 1 x Dedicated BMC Ethernet port (with front I/O configuration)
- Rear Ports:
- 1 x Dedicated BMC Ethernet port
- 2 x USB 3.1 Type A ports
- 1 x VGA
- Internal Ports:
- 1 x USB 3.1 Type A port
- Up to 4x PCIe slots ( x16 connectors)
