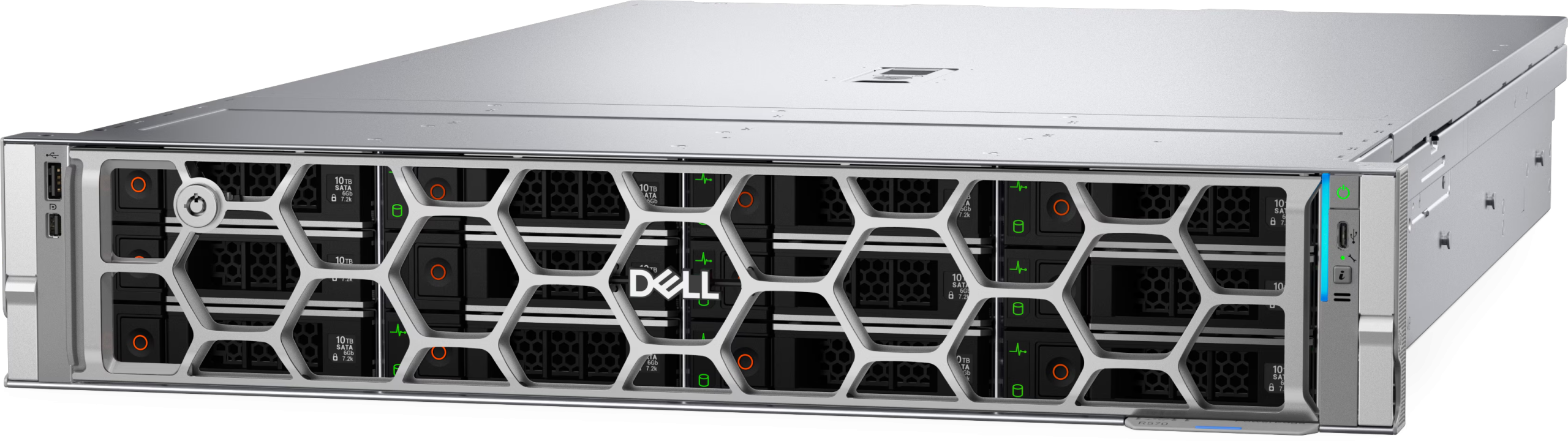

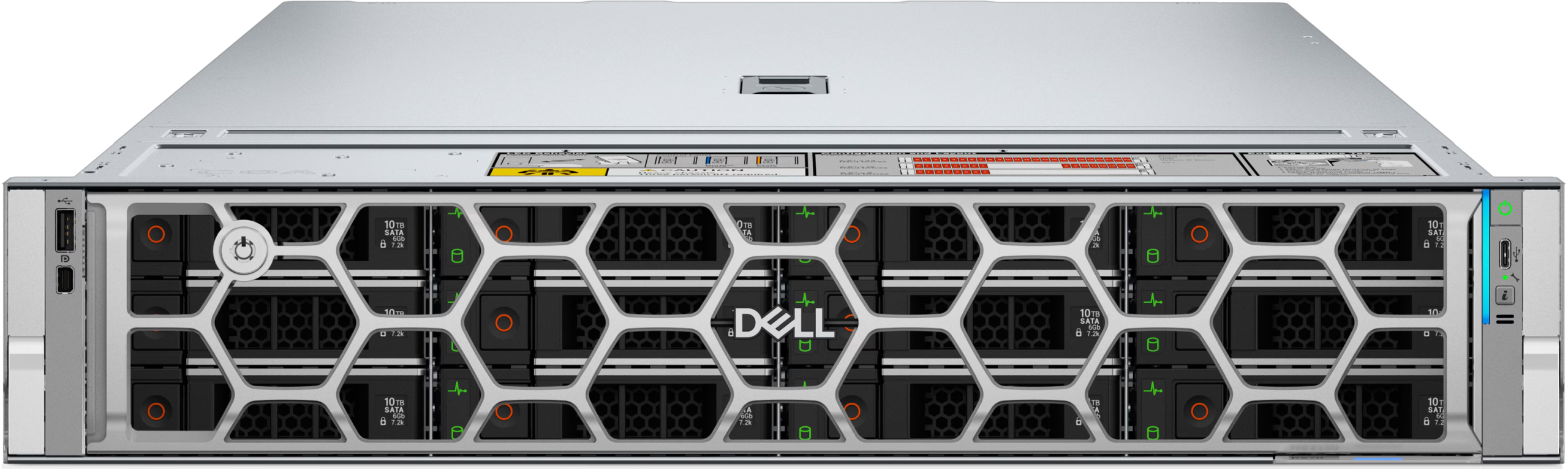

Dell PowerEdge R570 Rack Server

The Dell PowerEdge R570 is a powerful 2U, single-socket rack server designed to deliver high performance while
maintaining exceptional energy efficiency. Its advanced design helps drive cost savings and improve data center
productivity. With more cores in a single socket, the R570 delivers superior performance in a compact footprint, all while minimizing power consumption.

Related Content | Resources | Technical Specs

Request a Custom Quote Today!

  • CPU: 1x Intel Xeon 6 Processor with up to 144 cores per processor
  • Memory: 16x DDR5 DIMM slots, supports RDIMM 4 TB max, speeds up to 6400 MT/s
  • RAID: PERC H365i, PERC H965i
  • HDD: 2.5″, 3.5″, or E3.S Hot Swap SAS, SATA, Near Line SAS, and NVMe SSD
  • PSU: 800W Platinum/Titanium, 1100W Platinum/Titanium, 1400W LVDC -48 — -60 VDC, 1500W Titanium, 1800W Titanium, hot swap redundant
  • Riser: Up to 6x Gen5 PCIe slots (x16 connectors)
★ Dell Partner & Authorized Reseller ★

★ Stocking Vendor for Fast Turnaround ★

★ 100% Dell Original Components ★

★ Custom Builds by Dell Certified Engineers ★

Related Content

How to Choose the Dell PowerEdge R760xa for GPU Workloads
Blog: How to Choose the Dell PowerEdge R760xa for GPU Workloads

Resources

🖺 Tech Spec Sheet

Technical Specs

  • One Intel® Xeon® 6 E-core processor with up to 144 cores
  • One Intel® Xeon® 6 P-core processor with up to 86 cores with R1S option
  • 16 DDR5 DIMM slots, speeds up to 6400 MT/s
  • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS), M.2 interposer with up to 2 x M.2 NVMe SSDs, USB
  • PERC H365i DC-MHS, PERC H965i DC-MH, PERC H365i Adapter PERC H965i Adapter
  • Up to 32x EDSFF E3.S Gen5 NVMe max 1966.08 TB
  • Up to 24x 2.5″ SATA max 92.16 TB
  • Up to 8 x 2.5-inch SATA/Universal max 491.52 TB
  • Up to 16 x 2.5-inch SATA RAID max 61.44 TB
  • Up to 1800W Titanium 100-240 VAC or 240 HVDC, hot swap redundant
  • Air Cooling
  • Up to 6x hot swappable fans
  • Up to two OCP NIC card 3.0: Two slots on the front or two slots on the rear (optional)
  • Up to 3 x 400W DW; Up to 4 x 75W SW GPUs
  • Front Ports:
  • 1 x USB 2.0 Type-C (HOST/BMC Direct)
  • 1 x USB 2.0 Type-A (optional LCP – Secondary KVM)
  • 1 x Mini DisplayPort (optional LCP – Secondary KVM)
  • 1 x DB9 Serial (with front I/O configuration)
  • 1 x Dedicated BMC Ethernet port (with front I/O configuration)
  • Rear Ports:
  • 1 x Dedicated BMC Ethernet port
  • 2 x USB 3.1 Type A ports
  • 1 x VGA
  • Internal Ports:
  • 1 x USB 3.1 Type A port
  • Up to 6x PCIe slots ( x16 connectors)
