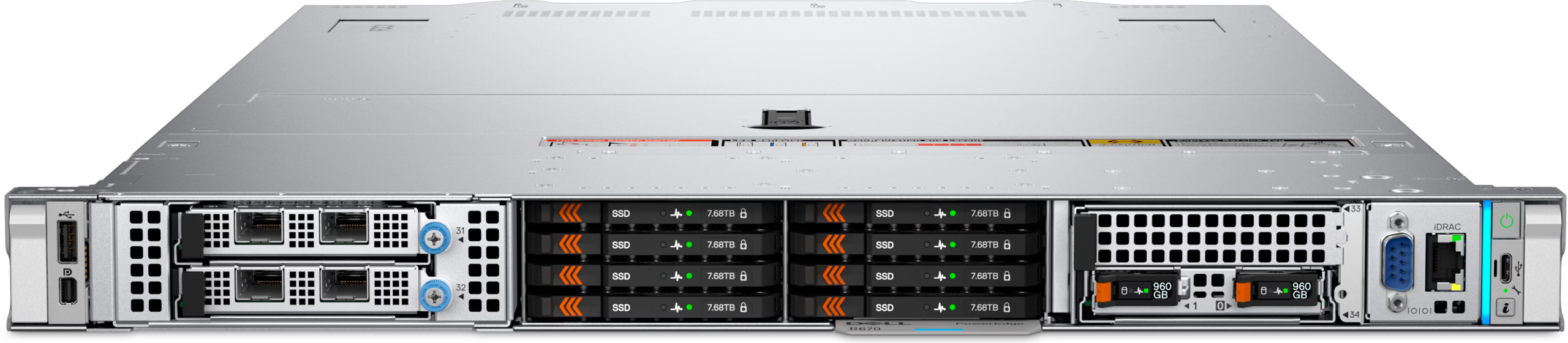

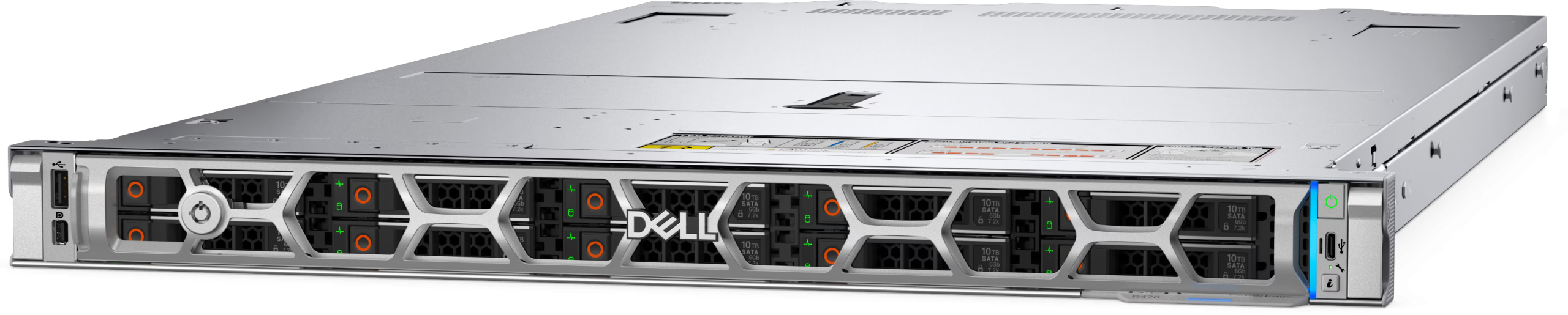

The Dell PowerEdge R670 is a 1U, dual-socket rack server designed for high performance computing with optimal
power efficiency and balanced performance to boost your data center productivity. It balances advanced computing
power with virtulization, cloud-native applications, all flash SDS, hyperscale workloads and scale out databases.
Related Content | Resources | Technical Specs
Request a Custom Quote Today!
- CPU: 2x Intel Xeon 6 Processor with up to 144 cores per processor
- Memory: 32x DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 6400 MT/s
- RAID: PERC H365i, PERC H965i, PERC H975i
- HDD: 2.5″ or E3.S Hot Swap SAS, SATA, Near Line SAS, and NVMe SSD
- PSU: 800W Platinum/Titanium, 1100W Platinum/Titanium, 1400W LVDC -48 — -60 VDC, 1500W Titanium, 1800W Titanium, hot swap redundant
- Riser: Up to 2x Gen5 PCIe slots (x16 connectors)
★ Dell Partner & Authorized Reseller ★
★ Stocking Vendor for Fast Turnaround ★
★ 100% Dell Original Components ★
★ Custom Builds by Dell Certified Engineers ★
Related Content
Resources
Technical Specs
- Two Intel Xeon 6 Processors with up to 144 cores or 86 P-cores per processor
- 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 6400 MT/s
- Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or M.2 Interposer board (DC-MHS): 2 x M.2 NVMe SSDs or USBInternal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS), M.2 interposer with up to 2 x M.2 NVMe SSDs, USB
- Internal controllers: Front PERC H965i, Front PERC H975i, Front PERC H365i
- Up to 20 x EDSFF E3.S Gen5 NVMe (SSD) max 307.2 TB
- Up to 8 x 2.5 inch SAS/SATA/NVMe Direct/NVMe Raid (SSD) max 122.88 TB
- 8 x 2.5-inch Universal 245.6 TB
- Up to 10 x 2.5 inch SAS/SATA (SSD) max 38.4 TB
- Up to 1800 W HLAC Titanium 200—240 VAC or 240 VDC, hot swap redundant
- Air Cooling and Direct Liquid Cooling
- Up to 4x hot swappable fans
- 2 x OCP NIC 3.0 cards (optional) and 1GbE, 10GbE, 25GbE, 100GbE and 400GbE
- Up to 3 x 75 W SW GPUs
- Front Ports:
- 1 x USB 2.0 Type C port
- 1 x USB 2.0 Type A port (optional)
- 1 x Mini-DisplayPort (optional)
- 1 x DB9 Serial (with front I/O configuration)
- 1 x Dedicated ethernet port for iDRAC management
- Rear Ports:
- 1 x Dedicated ethernet port for iDRAC management
- 2 x USB 3.1 Type A ports
- 1 x VGA
- Internal Ports:
- 1 x USB 3.1 Type A port
- Up to 2 x16 Gen5 PCIe slots
