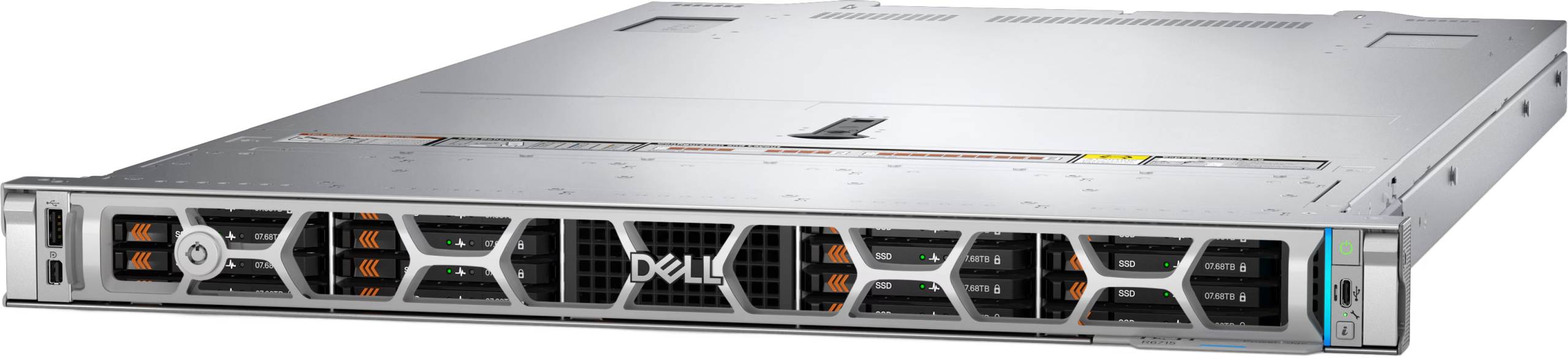

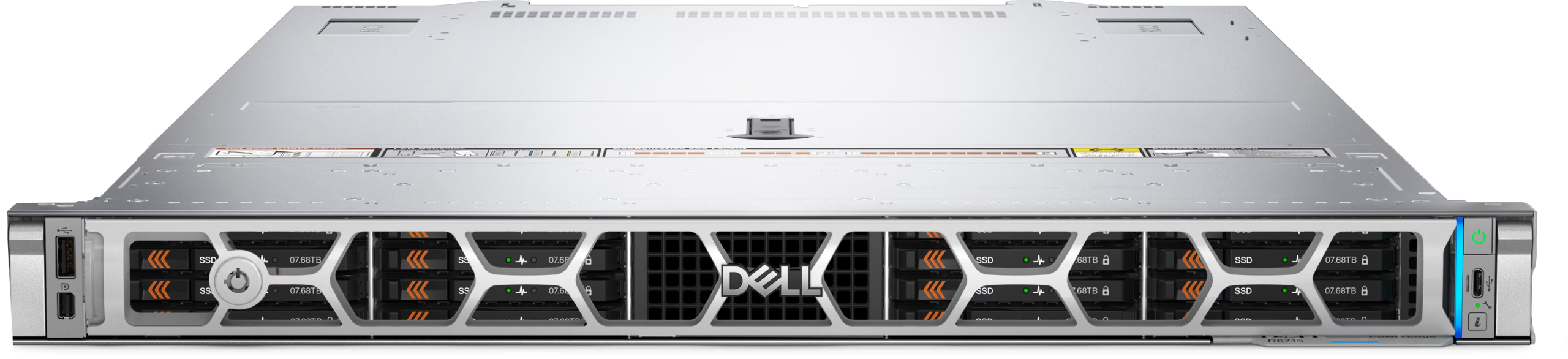

The Dell PowerEdge R6715 server is a single-socket optimized solution designed to deliver high performance, flexibility, and efficiency for a variety of applications. It is powered by 5th generation AMD EPYC™ processors and offers cutting-edge features that dynamically scale to push the upper limits of application performance.
Related Content | Resources | Technical Specs
Request a Custom Quote Today!
- CPU: 1x 5th Generation AMD EPYC 9005 Series processor with up to 160 cores
- Memory: 24 DDR5 DIMM slots, supports RDIMM 3 TB max, speeds up to 5200 MT/s
- RAID: PERC H365i, PERC H965i, PERC H975i
- HDD: 2.5″, 3.5″ and E3.S Hot Swap SAS, SATA, Near Line SAS, and NVMe SSD
- PSU: 800W Platinum, 1100W Platinum, 800W Titanium, 1100W Titanium, 1500 W Titanium, 1800W Titanium 100-240 VAC or 240 VDC, hot swap redundant
- Riser: Up to 3x Gen5 PCIe slots (x16 connectors)
★ Dell Partner & Authorized Reseller ★
★ Stocking Vendor for Fast Turnaround ★
★ 100% Dell Original Components ★
★ Custom Builds by Dell Certified Engineers ★
Related Content
Resources
Technical Specs
- One 5th Generation AMD EPYC 9005 Series processor with up to 160 cores per processor
- 24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 5200 MT/s
- Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
- Internal Controllers (RAID): PERC H365i, H965i, H975i
- External HBAs (non-RAID): HBA465e
- Up to 20 x EDSFF E3.S + Rear 2 x EDSFF E3.S
- Up to 16 x EDSFF E3.S Gen5 NVMe drives
- Up to 10 x 2.5-inch with 4 x Universal
- Up to 8 x 2.5-inch Universal or U.2 / 10 x 2.5-inch SAS/SATA
- Up to 4 x 3.5-inch SAS/SATA
- Up to 1800W, hot swap redundant
- Air Cooling and Direct Liquid Cooling
- Up to 4x hot swappable fans
- 2 x OCP card 3.0 (optional) and 1GbE, 10GbE, 25GbE,100GbE and 400GbE
- Front Ports:
- 1 x USB 2.0 Type-A (optional LCP KVM)
- 1 x USB 2.0 Type-C (HOST/BMC Direct)
- 1 x Mini Display port (optional LCP KVM
- Rear Ports:
- 1 x 1Gb dedicated BMC Ethernet port
- 2 x USB 3.1 Type A ports
- 1 x VGA
- Internal Ports:
- 1 x USB 3.1 Type A port
- Up to 3 x16 Gen5 PCIe slots
