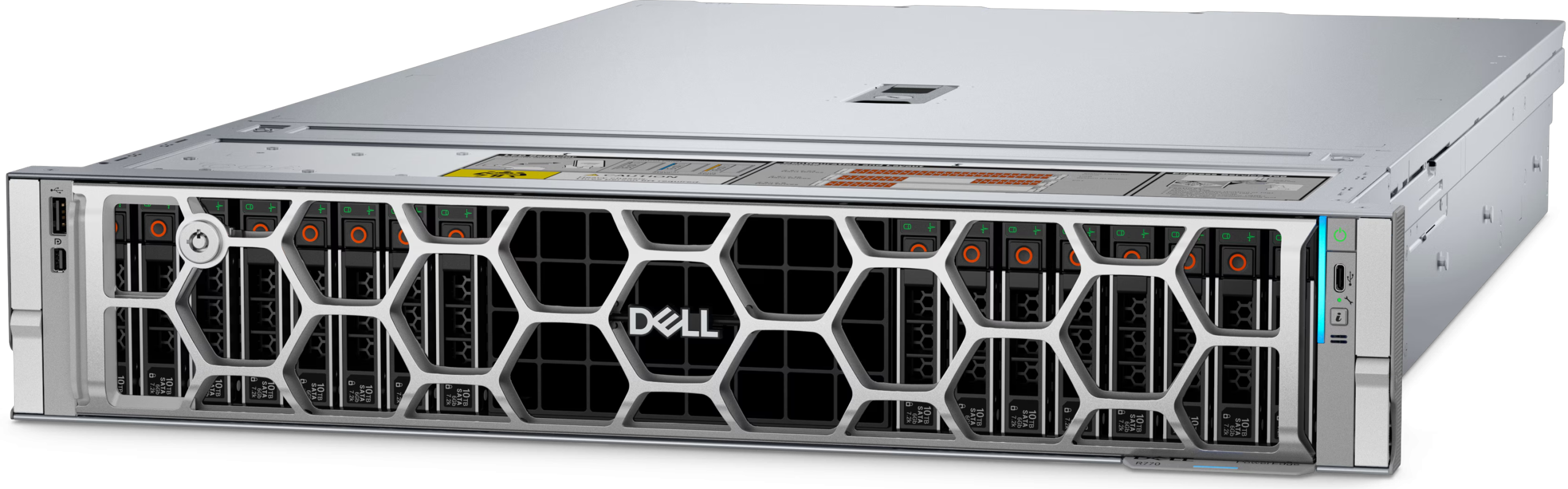

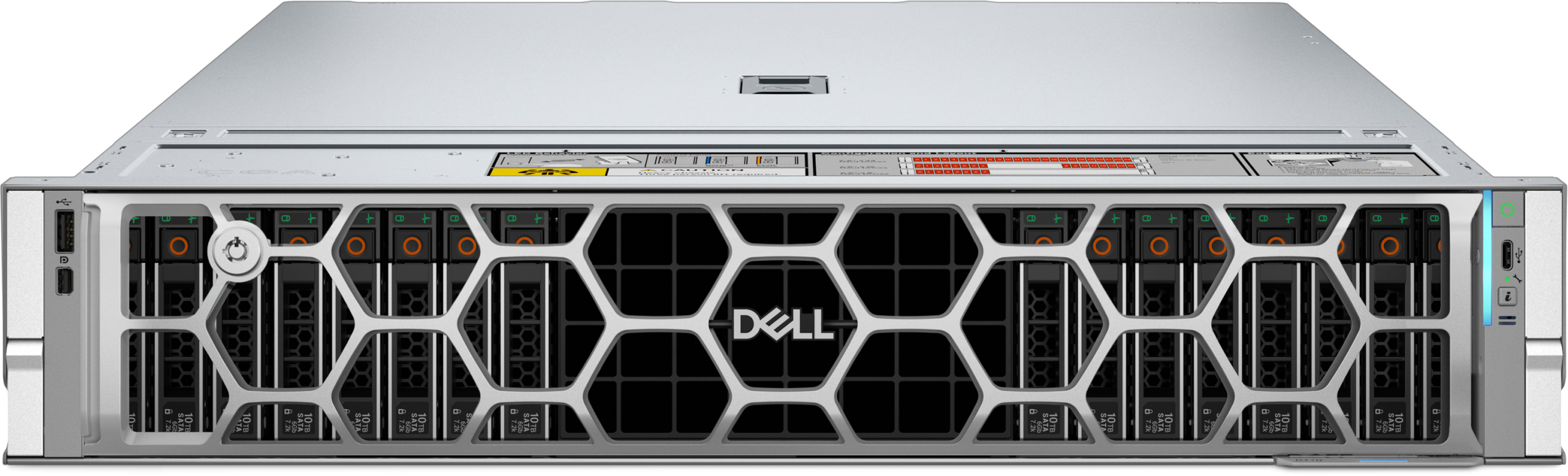

The Dell PowerEdge R770AP is engineered to consolidate demanding enterprise workloads at scale. With dense
compute capacity, advanced memory bandwidth, and secure lifecycle management, it supports large-scale
virtualization, mission-critical databases, analytics, and AI-driven applications – all with the proven reliability of PowerEdge.
Related Content | Resources | Technical Specs
Request a Custom Quote Today!
- CPU: 2x Intel Xeon 6 processors, with up to 128 cores per processor
- Memory: 24x DDR5 DIMM slots, supports RDIMM 3 TB max, speeds up to 6400 MT/s
- RAID: PERC H975i
- HDD: 2.5″ or E3.S Hot Swap NVMe
- PSU: 1500W, 1800W, 2400W, and 3200W Hot Swap Redundant
- Riser: Up to 5x Gen5 PCIe slots
★ Dell Partner & Authorized Reseller ★
★ Stocking Vendor for Fast Turnaround ★
★ 100% Dell Original Components ★
★ Custom Builds by Dell Certified Engineers ★
Related Content
Resources
Technical Specs
- Two Intel® Xeon® 6 6900-series processors with P-Cores with up to 128 Cores
- 24 DDR5 DIMM slot, supports RDIMM 3 TB max, speeds up to 6400 MT/s
- Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or USB
- Internal controllers: PERC H975i DC-MHS front
- Up to 32 x EDSFF E3.S Gen5 NVMe (SSD) max 491.52 TB
- Up to 16 x 2.5-inch G5 x2 NVMe (SSD) max 245.76 TB
- Up to 16 x 2.5-inch G5 x4 NVMe (SSD) max 245.76 TB
- Up to 3200 W Titanium 277Vac & HVDC, hot swap redundant PSU
- Air Cooling
- Up to 6x hot swappable fans
- Up to two OCP NIC card 3.0
- Front Ports:
- 1 x USB 2.0 Type C port
- Rear Ports:
- 1 x Dedicated BMC ethernet port
- 1 x VGA
- 2 x USB 3.1 Type A ports
- Internal Ports:
- 1 x USB 3.1 Type A port
- Up to 5x PCIe slots ( x16 connectors)
