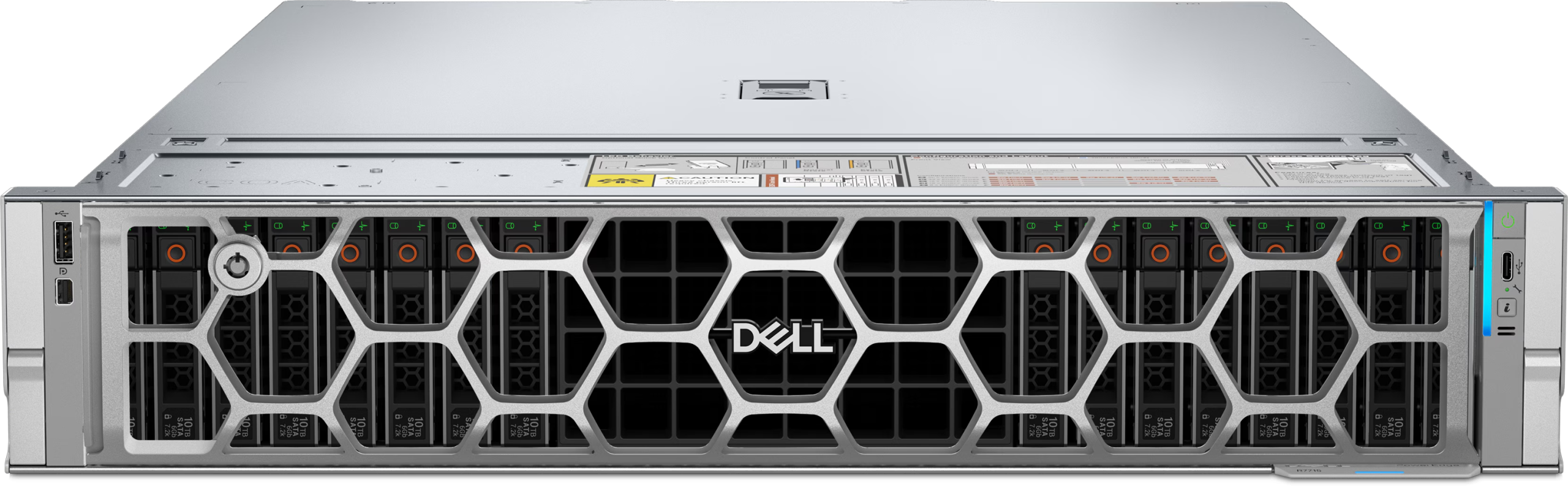

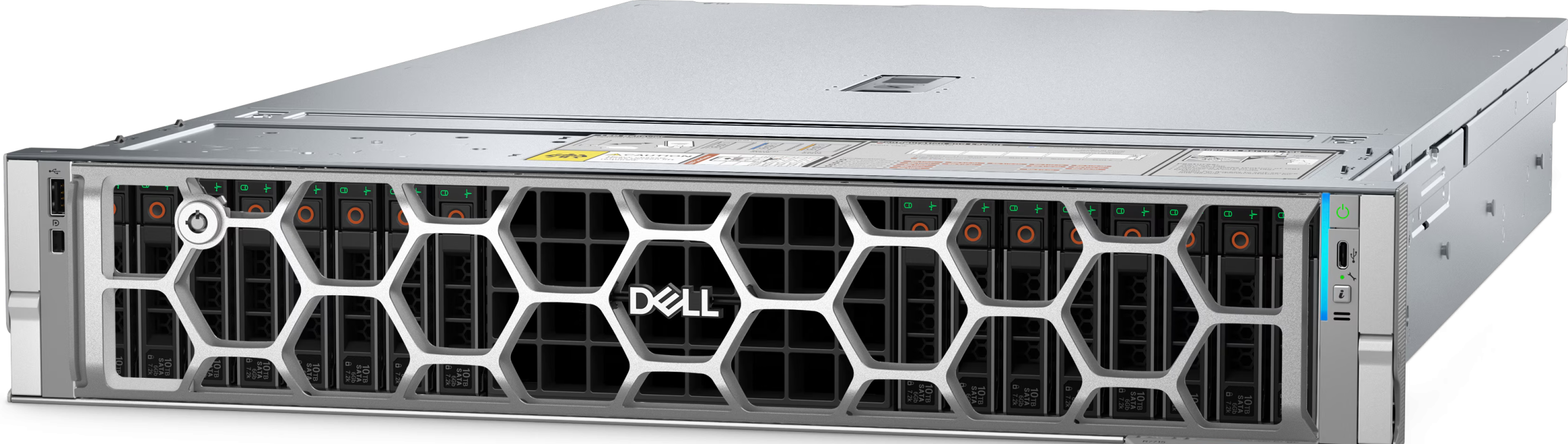

The Dell PowerEdge R7715 server is a single-socket optimized solution designed to deliver high performance, flexibility, and efficiency for a variety of applications. It is powered by 5th generation AMD EPYC™ processors and offers cutting-edge features that dynamically scale to push the upper limits of application performance.
Related Content | Resources | Technical Specs
Request a Custom Quote Today!
- CPU: 1x 5th Generation AMD EPYC 9005 Series processor with up to 160 cores per processor
- Memory: 24x DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 5200 MT/s
- RAID: PERC H365i, H965i, H975i
- HDD: 2.5″, 3.5″ or E3.S Hot Swap SAS, SATA, Near Line SAS, and NVMe SSD
- PSU: 800W Platinum/Titanium, 1100W Platinum/Titanium, 1500W Titanium, 1800W Titanium, 2400W Titanium, 3200W Titanium hot swap redundant
- Riser: Up to 8x Gen5 PCIe slots (x16 connectors)
★ Dell Partner & Authorized Reseller ★
★ Stocking Vendor for Fast Turnaround ★
★ 100% Dell Original Components ★
★ Custom Builds by Dell Certified Engineers ★
Related Content
Resources
Technical Specs
- One 5th Generation AMD EPYC 9005 Series processor with up to 160 cores per processor
- 24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 5200 MT/s
- Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
- Internal Controllers (RAID): PERC H365i, H965i, H975i
- External HBAs (non-RAID): HBA465e
- Up to 8 x EDSFF E3.S / 16 x EDSFF E3.S / 32 x EDSFF E3.S / 40 x EDSFF E3.S
- Up to 16 x 2.5-inchSAS/SATA SSD + 8 x U.2 NVMe drives
- Up to 8 x 2.5 Universal/ 16 x 2.5-inch SAS/SATA / 24 x 2.5-inch SAS/SATA
- Up to 12 x 3.5-inch SAS/SATA
- Up to 2 x U.2
- Up to 3200W 277Vac & HVDC, hot swap redundant
- Air Cooling and Direct Liquid Cooling
- Up to 6x hot swappable fans
- 2 x OCP NIC 3.0 card (optional) and 1GbE, 10GbE, 25GbE, 100GbE and 400GbE
- Front Ports:
- 1 x USB 2.0 Type-A (optional LCP KVM)
- 1 x USB 2.0 Type-C (HOST/BMC Direct)
- 1 x Mini Display port (optional LCP KVM
- Rear Ports:
- 1 x 1Gb dedicated BMC Ethernet port
- 2 x USB 3.1 Type A ports
- 1 x VGA
- Internal Ports:
- 1 x USB 3.1 Type A port
- Up to 8 x16 Gen5 PCIe slots
